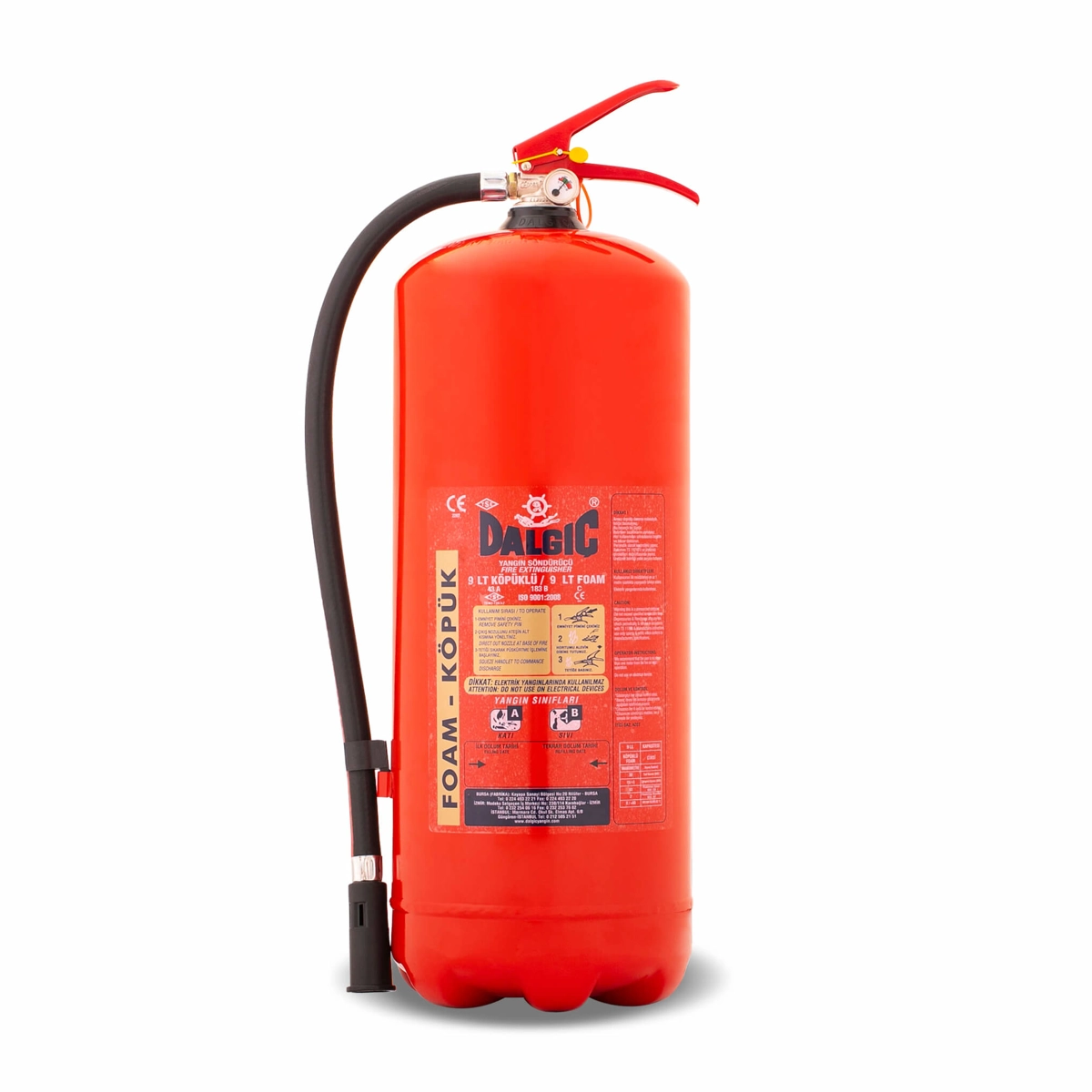

9L - Foam Fire Extinguisher

9L Kopuklu Yangin Sondurucu 1
9L Kopuklu Yangin Sondurucu 1 9L Kopuklu Yangin Sondurucu 2
Ürün Özellikleri
  • Model :DKPK-9KK
  • Extinguisher Type :Continuous Pressure
  • Capacity :9 Kg
  • Extinguishing Agent :AFF Foam
  • Propellant Type :N2 (Nitrogen)
  • Test Pressure (kg/cm²) :50 BAR
  • Operating Pressure (kg/cm²) :18 BAR
  • Operating Temperature :0 °C / +60 °C
  • Discharge Time :15 Seconds
  • Spray Distance :5 Meters
  • Fire Class :21A 183B
  • Height (mm) :659 mm
  • Width (mm) :205 mm
  • Depth (mm) :185 mm
  • Full Weight (gr) :13650 gr
CE ISO TS
Genel Bilgilendirme

It is effective in Class A and B fires. When used, the foam covers the burning material, cutting off oxygen and extinguishing the fire. Due to this property, it is especially effective in gasoline/diesel fires and is the preferred fire extinguisher in fuel terminals, filling stations, or thinner/paint storage areas. Since it is water-based, it must never be used on electrical fires! Given that a significant portion of fires in our country are caused by electrical panels and transformers, relying solely on this extinguisher in such environments is highly dangerous.

Firefighting foam consists of bubbles formed under pressure by mixing foam concentrate with water and air. Foam Formula: Foam concentrate + Water + Nitrogen

Low-expansion foam extinguishing systems can be applied in specific fire situations involving flammable and combustible liquids, such as tanker filling or fuel stations. The foam fire extinguisher discharges foam bubbles onto the liquid surface, cooling and forming a layer over the flammable liquid to extinguish the fire. High-expansion foams are used in places where it is necessary to fill the area with foam and prevent contact between the fire and air. A good foam fire extinguisher should have features such as durability, adhesiveness, heat resistance, vapor retention, prevention of re-ignition, and effective fire suppression.

7114 (DC-04) Grade DKP Special Deep Drawing Sheet

After the gas metal arc welding process, the device undergoes testing by being exposed to a pressure of 50 Bar in a test machine. A 50 BAR hydrostatic pressure test is applied to the sheet metal body of our devices. The trigger mechanism, which ensures controlled operation of our devices, is CE certified. The trigger mechanism has a safety valve that balances gas pressure in the event of shocks, drops, or other sudden pressure changes. After the body welding process, the device is tested for leak-tightness. Our product, which easily passes the extinguishing tests conducted by TSE and the Ministry of Industry, is designed based on user experience. Our products are manufactured according to European Norm standards and are CE certified for international circulation. Our production facility is designed in accordance with ISO 9001 standards. Our devices are covered by a 4-year warranty against production-related defects. According to the standards, you must contact our company for refilling the fire extinguishers after 4 years.

;
